Pit Puzzle Parking: An Smart Way to Park in Cities

The Pit Puzzle Parking System is a cutting-edge, compact parking option that maximizes car storage through an automated, multi-level mechanism. With several platforms that can move both vertically and horizontally, this system is made to operate below ground level and enable highly structured vehicle stacking. This technique reduces wait times and improves user convenience by allowing independent car access, in contrast to traditional parking methods. Designing and manufacturing premium pit puzzle parking systems is the area of expertise for Kings Engineers Manufacturers, a pioneer in parking solutions. This system is a great option for residential buildings, commercial complexes, and public parking facilities because of its cutting-edge technology, which guarantees smooth operation, high durability, and improved safety features.

The pit puzzle parking system's unique benefits

The Pit Puzzle Parking System's effective utilization of subterranean space, which enables property owners to improve parking capacity without taking up new land, is one of its main benefits.

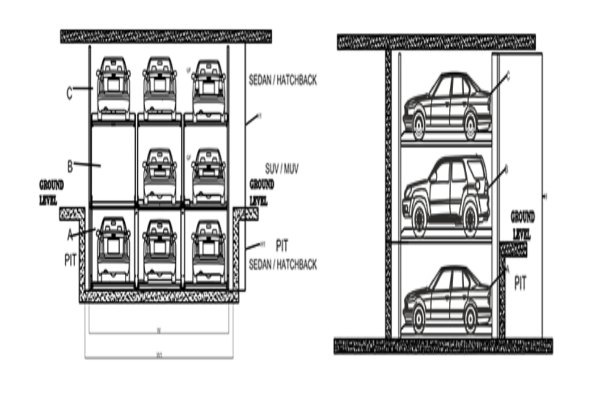

Multi Level Car Parking System - Kings Engineers

In metropolitan settings when real estate is costly and scarce, this technique is quite advantageous. Unlike conventional stacking systems, which necessitate removing upper-level automobiles before retrieving lower-level ones, independent access to vehicles is another important benefit. Engineers of the Kings Fast and easy car retrieval is ensured by the high-speed automated controls that manufacturers incorporate into their systems. The completely enclosed underground structure also improves vehicle security by offering defense against the elements and theft.By eliminating the need for drivers to look for parking spots, the technology also reduces carbon emissions by reducing traffic and fuel use.

The Benefits We Provide You

The Pit Puzzle Parking System from Kings Engineers Manufacturers has a number of innovative features that improve its use, robustness, and security. Among them are:

• multidirectional movement technology that allows for both horizontal and vertical movements.

• High-load-bearing steel structure, ensuring long-term durability.

• emergency stop mechanisms and automated safety locks to avoid mechanical breakdowns.

• For precise operation, smart sensors and digital control systems are used.

• Touch-screen interfaces that are easy to use and remote operating features.

• platform sizes that can be adjusted to suit various vehicle dimensions.

• energy-efficient electric and hydraulic lifting systems that lower operating expenses.

• These characteristics give users a flawless parking experience by making the system dependable, effective, and simple to maintain.

The Pit-Puzzle Parking System: What is it?

Vehicles may be moved both horizontally and vertically within an underground pit thanks to the Pit Puzzle Parking System's mechanical platform design. Automobiles are parked on moveable pallets that may be automatically moved to make room for more vehicles to be retrieved or stored. Without having to move every parked car, the system cleverly rearranges the platforms when a user requests their automobile, bringing the chosen vehicle to ground level. Kings Engineers Manufacturers uses cutting-edge PLC (Programmable Logic Controller) technology to guarantee smooth automation and exact movement. This system is perfect for metropolitan areas with limited space since it is energy-efficient, which lowers operating costs, and it can fit a large number of automobiles in a small area.

Technical Specifications

Parameter	Value
Maximum-lifting capacity	2000 kgs
Lifting speed	3.0 to 5 m/min
lifting motor	2.2kw to 3.7kw
Sliding-travel speed	7m/min
Horizontal-travel speed	7m/min
Boundary	Based on site required
Power Supply	3Phase 415V 50Hz
Operation	Pit-Lifting hydraulic, sliding Geared motor
Vehicle Tybe	Hatchback/SUV/Sedan
Control System	PLC Control
Safety	Sensors, Automaticsafety locks, Emergency switch
Warranty	1 Year

Operating Procedure

When a vehicle arrives, the driver positions the car on an available pallet at the ground level. After switching off the engine, the driver exits the parking area and initiates the parking command using a control panel, access card, or keypad. The system identifies an available parking slot, including those located in the pit level.

To accommodate the vehicle, the system rearranges pallets by sliding them horizontally on the same level and lifting or lowering pallets vertically using electric motors and chain or wire rope mechanisms. If the assigned slot is in the pit, the pallet carrying the vehicle is smoothly lowered below ground level. All movements occur sequentially and automatically to ensure safety and accuracy.

Vehicle Storage in Pit Level

The pit level is designed with proper drainage, waterproofing, and structural reinforcement to safely accommodate vehicles below ground. Once the pallet reaches the designated pit slot, it is securely locked using mechanical locks and anti-fall devices. Guide rails ensure precise alignment, while sensors continuously monitor position, load, and clearance. The vehicle remains safely stored until retrieval is requested.

To retrieve the vehicle, the user enters the parking number or uses an access card at the control panel. The control system calculates the shortest and safest movement path. Pallets blocking the requested vehicle are moved horizontally or vertically using the empty slot. The vehicle pallet is then lifted from the pit level to the ground level or shifted from upper levels accordingly.

Once the pallet reaches the exit position at ground level, the system stops automatically and provides an audio or visual signal. The driver can then enter the vehicle and exit the parking area safely.

The three-level pit puzzle car parking system is an intelligent and space-efficient parking solution for modern urban infrastructure. By combining underground pit utilization with puzzle-based vertical and horizontal movement, it delivers high parking capacity, safety, and operational efficiency. Its well-coordinated working procedure makes it a reliable choice for residential, commercial, and mixed-use developments.

Safety and Control Features

The three-level pit puzzle parking system is equipped with advanced safety features such as photoelectric sensors, limit switches, overload protection, emergency stop buttons, anti-drop locks, and interlock systems. These features prevent misoperation, ensure structural safety, and protect both vehicles and users. The PLC control system continuously monitors all movements and halts operation in case of abnormal conditions.

Applications

Because of its great efficiency and adaptable design, the Pit Puzzle Parking System is frequently used in many different sectors. This approach maximizes the amount of parking space available for homeowners and tenants in residential structures without necessitating further land expansion. Its large car capacity ensures that workers and visitors always have a parking space, which is advantageous for office buildings and commercial complexes. This system is used by hotels, hospitals, and shopping centers to offer personnel and patrons with well-organized, convenient parking. This technology is integrated by government and municipal parking facilities to produce intelligent urban parking solutions and lessen traffic. This system is a scalable and flexible parking solution since Kings Engineers Manufacturers provides tailored configurations to meet the unique requirements of various sectors.

Key Features

Space Saving Design

Multiple parking capacity without additional construction or land usage.

Strong Steel Structure

Manufactured using heavy-duty steel sections for superior load capacity.

Hydraulic mechanical Operation

Smooth and safe lifting mechanism with reliable hydraulic power pack.

Safety Mechanisms

Equipped with mechanical locks and limit switches for enhanced safety.
