Three-Level Four-Post Stacker Parking : A High-Capacity Solution

An advanced multi-vehicle parking solution that maximizes space use is the Three-Level Four-Post Stacker Parking System. This technique greatly expands the parking capacity of residential buildings, business complexes, office spaces, and urban parking lots by enabling the stacking of three automobiles in a single parking place. The system is easy to operate and guarantees stability, longevity, and safety thanks to its sturdy four-post structure.

High-performance three-level, four-post stacker parking systems that serve a variety of sectors and infrastructures are the specialty of Kings Engineers Manufacturers, a pioneer in parking technology solutions. To ensure smooth and dependable operation, their systems are constructed with heavy-duty materials, cutting-edge hydraulic lifting mechanisms, and sophisticated safety features.

The Three-Level Four-Post Stacker Parking System's capacity to optimize parking space without requiring extra land is one of its main benefits. This method essentially triples parking capacity within the same footprint in highly populated urban locations where parking availability is becoming a significant concern. Property owners can increase the number of parked cars without enlarging the parking lot by making use of vertical space. Engineers of the Kings In order to accommodate vehicles of different sizes, such as sedans and SUVs, manufacturers construct their systems with changeable platform heights. Because of its flexibility, the system can be used in a variety of parking situations.

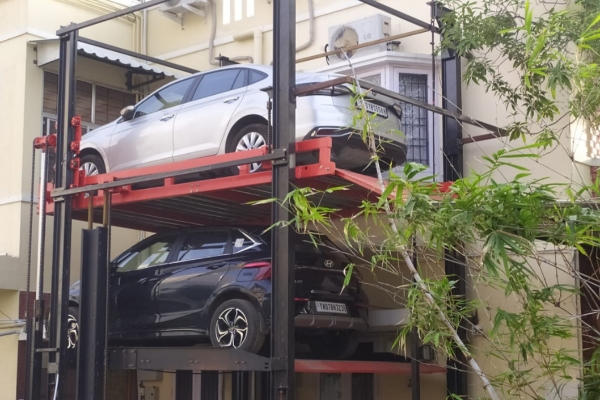

Multi Level Car Parking System - Kings Engineers

The stacker method is also less expensive than conventional multi-level parking garages since it eliminates the requirement for subterranean excavation.To ensure long-term endurance, Kings Engineers Manufacturers incorporates heavy-duty steel constructions and corrosion-resistant components into their system designs. Additionally, the technology shields the lower-parked car from potential harm by limiting exposure to external factors including sunlight, rain, and theft. Additionally, the system's automated operation offers a user-friendly experience, making it a dependable and practical parking solution.

Technical Specifications

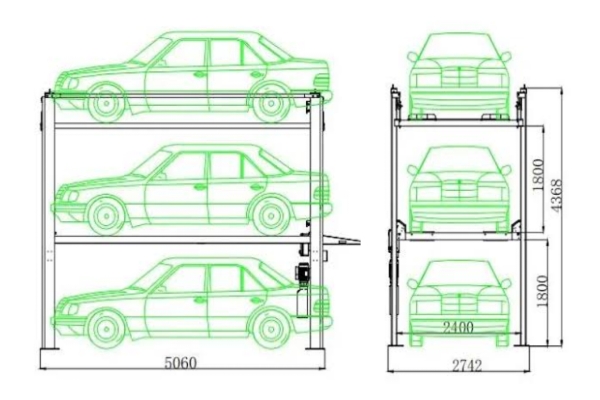

Multi Level Car Parking System - Kings Engineers
Parameter Value
Maximum Lifting Capacity2000 kgs
Lifting Height4000 mm
Over All Height6000 mm
Platform Size 1st2200 mm
Platform Size 2nd2000 mm
Boundary2600 x 5000 mm
Power SupplyAC 220V/440V 50Hz
Motor Power2.2 kw
Control SystemPush Button
Safety LocksAutomatic Electro Mechanical Lock
Warranty1 Year

Operating Procedure

The working mechanism of the three level four-post parking system is based on a hydraulic or electric lifting platform. The structure consists of four sturdy posts supporting a lifting platform that moves vertically within a pit.

Equally efficient is the retrieval procedure, which guarantees prompt and secure access to parked cars. It is necessary to clear the lower platforms before retrieving an automobile from the top levels. The second-level car must be lowered before the bottom-level vehicle may be retrieved if the requested vehicle is on the third level. By avoiding abrupt drops or misalignment, this sequential retrieval technique guarantees safe and controlled functioning. In order to prevent shocks or vibrations, vehicles can be lowered gradually and carefully thanks to the smooth descent technology that Kings Engineers Manufacturers incorporates into their systems.

Furthermore, in the event of a problem, the emergency stop functionality guarantees that the procedure can be immediately stopped. The Three-Level Four-Post Stacker Parking System is a dependable and useful solution for high-density parking requirements because of its thoughtfully designed mechanism, which maximizes safety and user convenience.

Key Features

Space Saving Design

Triple parking capacity without additional construction or land usage.

Strong Steel Structure

Manufactured using heavy-duty steel sections for superior load capacity.

Hydraulic Operation

Smooth and safe lifting mechanism with reliable hydraulic power pack.

Safety Mechanisms

Equipped with mechanical locks and limit switches for enhanced safety.

Applications

The Threelevel four-post parking system's adaptability makes it appropriate for a variety of uses. By offering an extra parking space without requiring additional property, it enables homeowners to maximize driveway space in residential neighborhoods. This technique aids in expanding parking space while preserving an orderly layout in commercial buildings, shopping centers, and office complexes. By effectively storing and showcasing automobiles, this technology helps car businesses, auto repairs, and rental companies. In order to lessen traffic on the streets, municipal authorities and urban planners might also include similar systems into public parking lots. The system's depth, width, and lifting capacity may be customized, making it the perfect parking option for a variety of businesses and types of properties.

Special advantages of parking system

Our Three-Level Four-Post Stacker Parking System's ability to conserve space by parking cars vertically rather than horizontally is one of its key benefits. This allows you to maximize the usage of your parking facilities by fitting more automobiles into a given area while freeing up precious real estate. Additionally, because of the complete automation of our parking system, vehicles can be parked and retrieved quickly, saving you and your customers time and clearing traffic. When it comes to parking solutions, security is always of the utmost importance. This is also true with our Three-Level Four-Post Stacker Parking System. Your clients' vehicles are safe and secure thanks to the additional security measures our system offers.

The Benefits We Provide You

To ensure safe and efficient parking, Kings Engineers Manufacturers incorporate cutting-edge features into their Three-Level Four-Post Stacker Parking Systems. These features include:

● High-strength steel structure for maximum stability and durability

● Hydraulic lifting technology for smooth and controlled platform movement.

● Electromagnetic safety locks to prevent accidental drops.

● Height protection sensors to ensure the system does not exceed height limits.

● Non-slip platform surfaces to prevent vehicle movement.

● Smart control panel with remote operation options for user-friendly management.

● Emergency stop buttons for enhanced safety.

These features contribute to a reliable, long-lasting, and low-maintenance parking system, ensuring optimal performance even under heavy usage conditions.
